Compression Conveyor Type Needle Metal Detector Equipment System JZD-48

fail-safe alarm system : alarm to warn/remind operator upon working abnormality

Product name : compression metal detector

sensitivity : 0.8

material : Stainless Steel

conveyor speed : 22m/minutes(variable speed,adjustable)

Price : $4,980

control panel : LCD display screen

user : All

IP Rating : Ip67

raw material : SUS304 stainless steel

Place of Origin : Guangdong, China

type : Compression Metal Detector

conveyor load : 25kg(customized)

MOQ : 1

waterproof : IP66

certification approval : ISO9001,HACCP,CE

operating frequency : Multi-Frequency

alarm : audible and visual alarm ,automatic indentification and stop

Detection type : double conveyor

Search Coil Diameter : 10 cm(3.94in)

Contact Now

Compression Conveyor Belt Needle Metal Detector JZD-48

Product Overview

The Compression Metal Detector is designed for detecting various metal contaminants including needle breakage, steel wire, lead, copper, stainless steel, and other colored metals in raw materials and finished products. Suitable for industries such as bedding, textiles, tobacco, toys, footwear, cosmetics, plastics, leather, rubber, and building materials.

This robust system operates effectively in challenging environments including high/low temperatures, humidity, dust, and moisture conditions.

Key Features

Compresses products before passing through detection tunnel for inspection
High sensitivity with strong interference immunity
Lightweight structure for easy mobility
Multiple detection window sizes available based on customer requirements
Adjustable conveyor speed for pipeline operations
Double belt structure with easy disassembly and cleaning
Audible and visual alarms with automatic stop function

Technical Specifications

Parameter	Specification
Inspection Window Height	100-125-150-200-300-400-500-600-700mm (customizable)
Inspection Window Width	600mm
Sensitivity	Φ0.8~2.0mm steel ball (customizable levels adjustable)
Power Consumption	140W (customizable)
Dimensions	1950(L)×1100(W)×1200(H)mm
Weight	220kg
Electrical Source	110V/220V/380V 50Hz/60Hz

Product Gallery

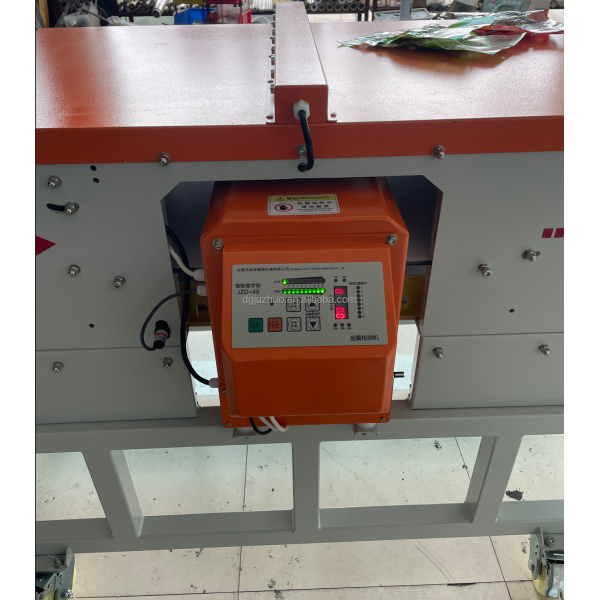

Compression Conveyor Type Needle Metal Detector Equipment System JZD-48
